Phased Array & TOFD & Thickness Gauge

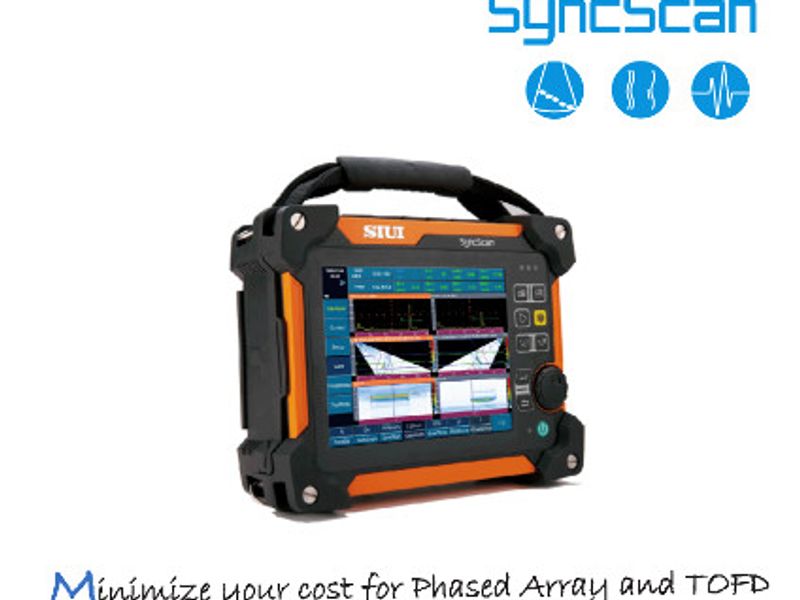

The SyncScan is a third-generation phased array flaw detector integrating PA, TOFD, and ultrasonic thickness gauge in a single compact instrument. Tagline: Minimize Your Cost for Phased Array & TOFD.

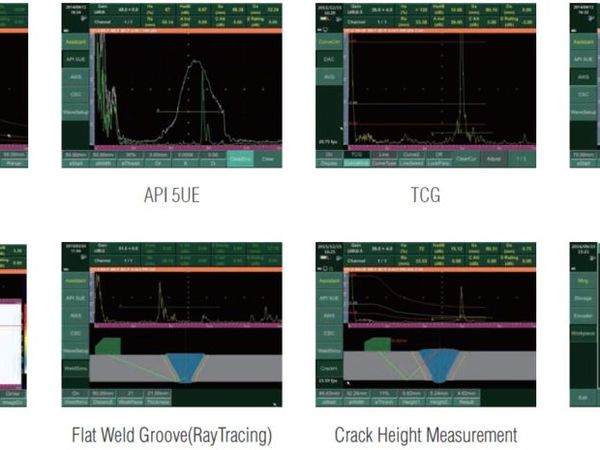

IP65 rated and weighing just 3.75 kg with battery, it features an 8.4" LCD touchscreen (800×600 px) with upgradeable software. Conventional UT functions include velocity/zero calibration, angle calibration, DAC, TCG, AVG/DGS, full-screen A-scan, coordinate switching, surface compensation, auto freeze, auto gain, wave compare, API, AWS, CSC, B-scan, flat weld groove raytracing, and crack height measurement.

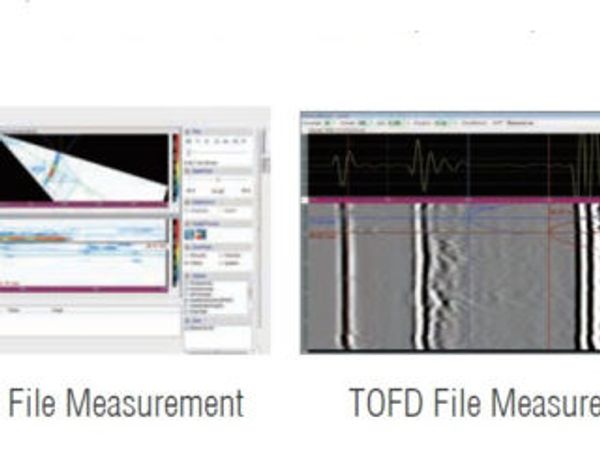

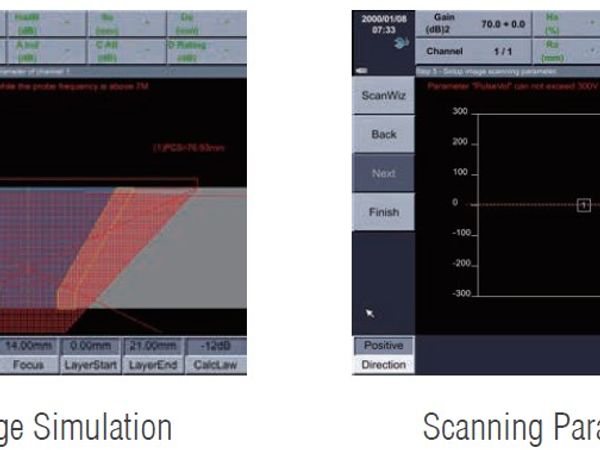

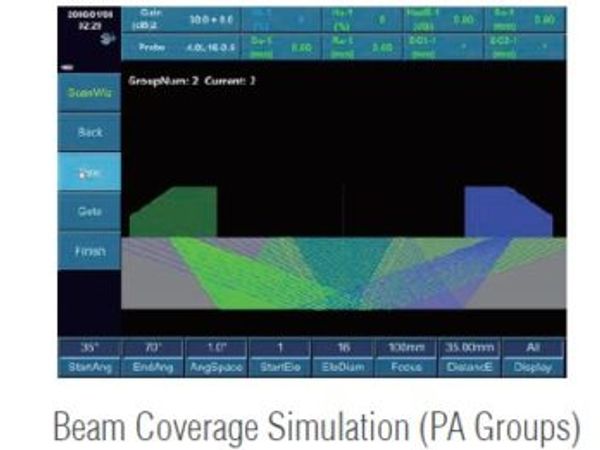

PA capabilities cover up to 6 groups per probe, dual-probe simultaneous inspection, BEA function, and 8 flat weld groove types (V, Half-V, Y, X, U, I, Y with backing, Asymmetric). The TOFD module includes a 5-step wizard, flaw height/length measurement, and advanced image processing. PC software provides automated Word/Excel reporting.
| IP Rating | IP65 |
| Weight | 3.75 kg (with battery) |
| Body Depth | 90 mm |
| Display | 8.4" LCD touchscreen, 800×600 px |
| PA Groups per Probe | Up to 6 |
| Small Pipe OD Range | 20.32–114.3 mm |
| Groove Types | 8 (V, Half-V, Y, X, U, I, Y+backing, Asymmetric) |
| TOFD Wizard Steps | 5-step automated setup |
