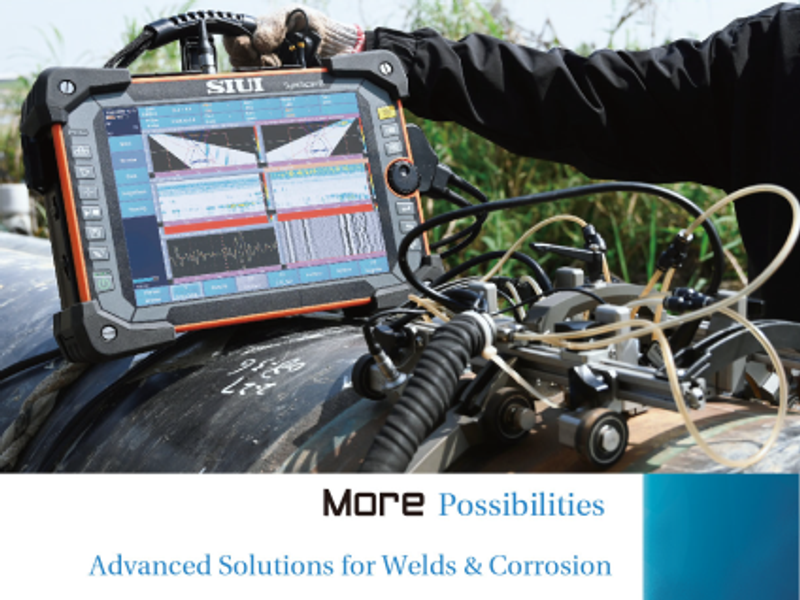

SyncScan 3

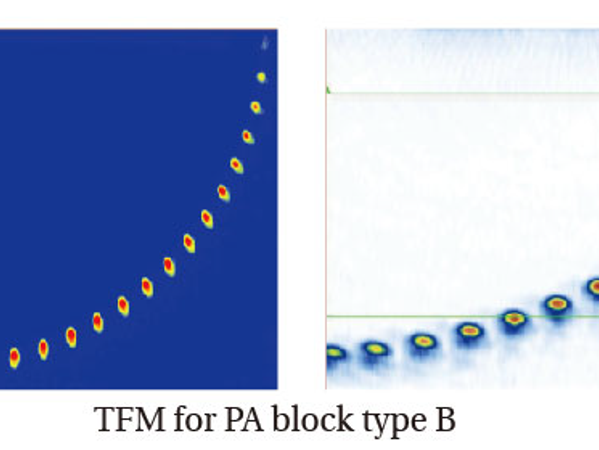

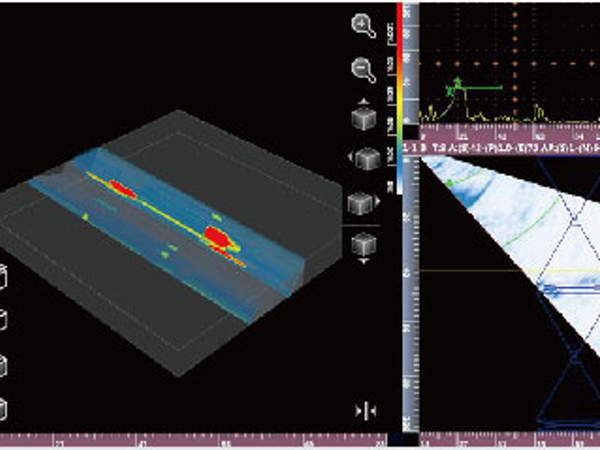

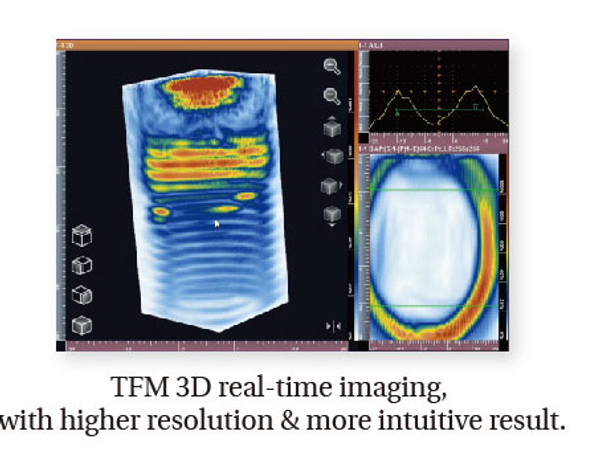

The SyncScan 3 is a 64:128PR Phased Array Flaw Detector with TFM — SIUI's most advanced solution for weld inspection and corrosion mapping. It delivers real-time 3D TFM imaging with up to six simultaneous TFM modes and image resolution up to 1024×1024 pixels.

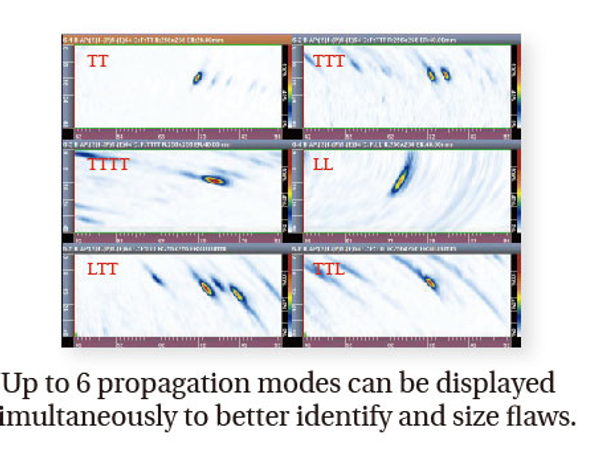

Raw FMC data recording is supported, eliminating the need for re-scanning in the field. Users can record raw FMC data for multi-mode TFM re-imaging using ten available propagation modes. The 64-channel PAUT configuration provides enhanced sensitivity and SNR, optimised for thick welds exceeding 100 mm, with scanning speeds up to 2.5× faster (7 m/min) and CAD import functionality.

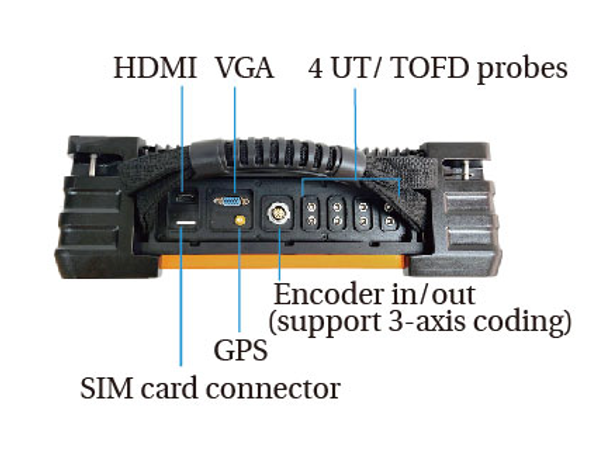

A 12.1" high-resolution touchscreen with quick-access buttons and compatibility with previous SyncScan 2 files ensures intuitive operation. An upgraded ABS protective cover provides improved sealing and impact resistance with convenient locking mechanisms. The fitting curve algorithm enhances data transmission speed and signal-to-noise ratio. Wi-Fi enables real-time data transfer, with optional 4G/SIM card for remote connectivity. The 4-channel TOFD operates three times faster (up to 15 m/min) for materials up to 300 mm thick.
